Using Stage

Stage is the place where you edit tours. It includes Main Window, Loading Window and Popup Window.

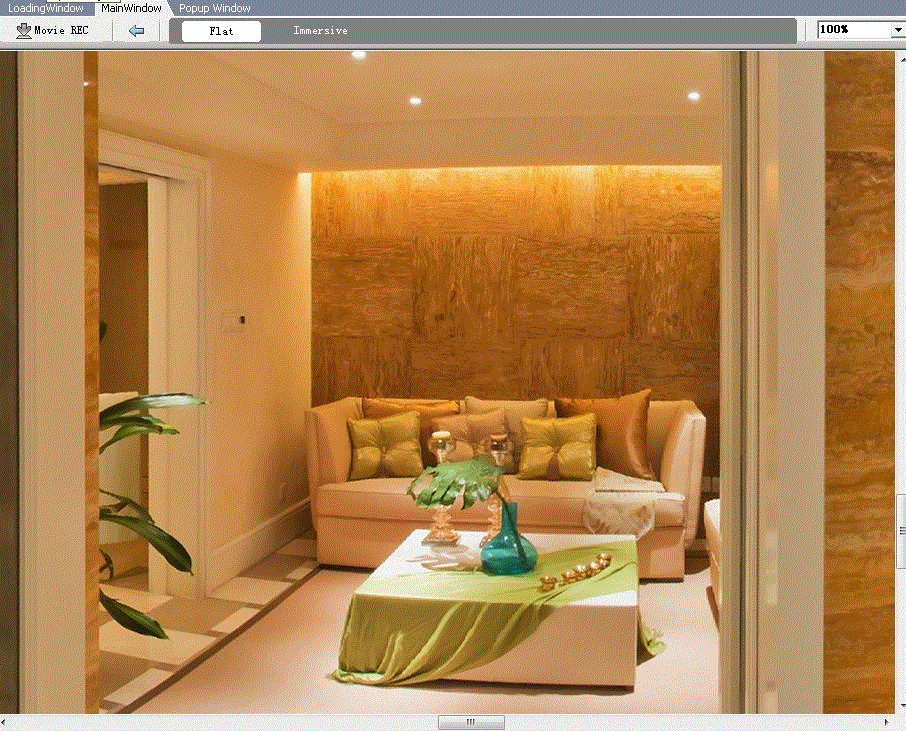

Note: There are two buttons right below MainWindow: MovieREC and Back. When you click MovieREC, the whole MainWindow will access the state of movie editing and then the MovieREC panel will be opened automatically. If you click Back button, you're back to the skin editing state.

Zoom on Stage at a specified percentage

You can zoom on Stage at a specified percentage. To view the whole stage on screen or to view a particular area at high magnification, you can change the magnification level. The minimum value for zooming out on the stage is 8%. The maximum value for zooming in on the Stage is 800%.

To magnify or reduce your view of the stage, execute any of the following:

Move Stage View

You can move the window in the Stage by dragging scrollbar. When the stage is zoomed in, you may not see the entire stage. Then you can view the whole stage by scrollbar instead of changing zoom level.

Set Properties for Loading Window

Open Loading Window Properties Panel to edit loading image, loading window background color, import the image or flash and set the progress bar.

erties panel which is as below:

Background color: The background color of Loading Window. Generally the background will not show except when the size of the waiting image is smaller than that of Main Window. Under that circumstance, partial background will be shown.

Loading Image File: You can set a waiting image which will be displayed before the scenes appear.

Loading Flash video file: You can set a waiting video which will be displayed before the scenes appear like advertisement. You could also import a customized SWF file, displaying the percentage loaded of a tour.

Note: This feature is only for Tourweaver 7 Professional edition. In Standard edition, only Easypano logo is used.

ProgressBar Style (Pro only): To set the style of the progress bar among None, Standard and Custom.

How to Make Waiting Image in Loading Window

You can make settings for preloading image in Loading Window. Tourweaver 7 supports not only jpg, bmp and gif, but also flash file such as swf for preloading image.

1. Click Loading Window page on Stage
2. Open Loading Window Properties Panel to edit preloading image including background color, importing the image or flash and setting the progress bar.

Note: This feature is only for Tourweaver 7 Professional edition. In Standard edition, only Easypano logo is used.

How to Make Loading video in Loading Window

You can make settings for preloading video in Loading Window. Tourweaver7 supports Flash file such as swf for loading video. You could also import a customized SWF file, displaying the percentage loaded of a tour

1. Click Loading Window page on Stage
2. Open Loading Window Properties Panel to edit Loading video including Background color, importing the Flash and setting the Loading progress bar.

Note: This feature is only for Tourweaver 7 Professional edition. In Standard edition, only Easypano logo is used.

Set Properties for Main Window

You can set properties for Main Window under its properties panel which is as below:

Width/Height (Pro only): To set whether to appear as the specified percentage of the browser window width/height and specify the percentage.

Note: When you choose open a blank project ,you can set as following and you also can reset in the main window.

Set Window Size: To set the width/height of main window as the specified of the browser window width/height.

1.If Specified Size selected, you can set the width/height of the main window to be a percentage of the browser.
2.If Scale to Browser Window is selected, the width/height of main window is set to be a fixed number of pixels so that the main window is always the same size regardless of which browser it appears in.
