Add Thumbnail

Thumbnail is the component that lists the small image of scene, map or movie on Main Window. When running virtual tour, you can switch to different scene, map or movie by clicking different items in thumbnail. In Tourweaver 7, you can not only list several or all the scenes by thumbnail, but also list several or all the images of map, movie or detail image. What's more, you can also choose to use your own images instead of the ones generated automatically.

How to add thumbnail

1. Click Thumbnail from Toolbox
2. place it onto Main Window

Set Properties for Thumbnail

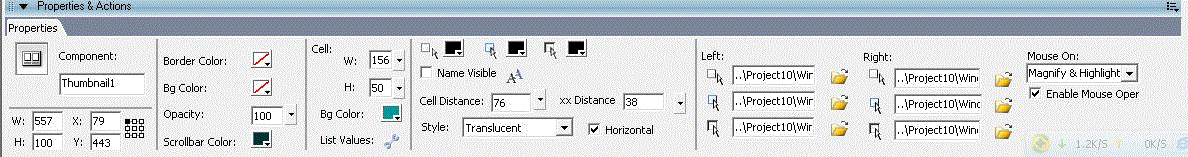

You can set properties for thumbnail under its properties panel which is as below:

Coordinate Grid (Pro only) Refer toChange Size and Appearance of Map Viewer>How to anchor Map Viewer on the Main Window?
Border Color Border color of thumbnail. You can also set it to transparent
Scrollbar Color When there are a large amount of cells in Thumbnail, the scrollbar will automatically appear. You can also set color for the scrollbar.
Cell Each small image in thumbnail is called one cell. You can set its width, height and background color. You can also set border color for its three states including normal, over and down as you do to hotspots.Tourweaver7 supports customizing distance between cells.
Text When "Name Visible" is selected, the item name will be displayed below each Cell. You can also set text color, font etc.
Left/Right of the thumbnail You can customize the specific pictures on both left and right of the thumbnail by this setting.
Effect of mouse over Tourweaver7 is added an mouse over effect for thumbnail .You can choose "change color' "high light" "Larger" and "show scene name"
Mouse sliding over effect Tourweaver7 is added a Mouse sliding over effect. When you slide your mouse over the thumbnail the thumbnail will auto slide in against mouse slide direction.
Style There are two different styles of thumbnail available according to the designed appearance of thumbnail: Classic and Translucent.
If Classic is selected, you could choose to show the cells in a single line or in multiple lines. Tick Single Line, and cells in it will be shown in a single line; otherwise, they will be shown in multiple lines.
If Translucent is selected, the cells in it will only show in single line, but you could choose to show the cells horizontally or vertically. Tick Horizontal, cells in it will be shown in a single line Horizontally; otherwise, they will be shown in a single line vertically.

Introduction to List Values

List Values is actually the source of thumbnail that means which type of items will be displayed in thumbnail. In Tourweaver 7, thumbnail can list small images of scene, map and movie. So when adding a thumbnail component, you should first decide its List Values, which source to choose; and then decide detailed items belonging to this source.

Source: To decide which object is to be shown in Thumbnail. You can choose Scene, Map or Movie as a source.

Item Description
Scene The scene Cell will change with the change of map. When 'Item Varies with different Map' is selected, these cells listed in thumbnail will vary with the different maps shown in Map viewer. For example, Scene1,2,3 are located in Map A (to relate a scene to a map, you can choose the relative map under the properties panel of that scene, or add a radar on the map referring to that scene) while Scene 4,5,6 are located in Map B. When map A is running, you can see Cell 1,2,3 are listed in Thumbnail; when map B is run, cell 4,5,6 are shown.
Map(only available in Professional edition) List all map cells which are chosen
Movie(only available in Professional edition) List all movie cells which are chosen

List: It's where all the source items will be listed. You can decide whether each of these items is shown or not by clicking the checkbox. If the checkbox is selected, the item will be shown in thumbnail; otherwise, it will not be shown.

Cell: Each small icon image shown in Thumbnail.

Item Description
Scene Flat Using flat scene image as cell image. For spherical scene, the cell is shown as a small flat in 2:1 ratio; for cylindrical scene, the cell is shown as a small rectangle flat; for still image, the image is directly shown in a small size.
Angle Shot Show the screenshot of scene in the viewer as a thumbnail cell. You can set the pan, tilt and FOV for each scene to show the desired angle of each scene.
Customized Using other images to shown in cell. Export the images from relative directory.
Map(only available in Professional edition) Flat Using a small sized map image.
Customized Using other images to shown in cell. Export the images from relative directory.
Movie(only available in Professional edition) Customized Using other images to shown in cell. Export the images from relative directory.

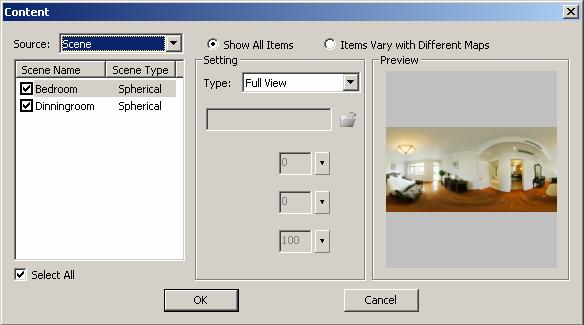

How to set Thumbnail for Scene

1. Select thumbnail from Main Window
2. Click from its Properties Panel
3. Choose Scene as the Source
4. Choose the scene which you're going to show in thumbnail from the list at left side
5. Select the image type for this scene cell at right side
6. Repeat step4,5 to add cells for multiple scenes
7. Tourweaver7 supports auto adding and auto refresh in the thumbnail by click "choose all scenes"
8. You can also select Show All Items or Items Varies with Different Map
9. Click OK

How to set Thumbnail for Map

1. Select thumbnail from Main Window
2. Click from its Properties Panel
3. Choose Map as the Source
4. Choose the map which you're going to display in thumbnail from the list at left side
5. Select the image type for this map cell at right side
6. Repeat step4,5 to add cells for multiple maps
7. Click OK

How to set Thumbnail for Movie

You can add a symbolized thumbnail for Movie. The steps are same with add thumbnail for scene. But the cell images should be customized.
Note: When the current skin is replaced, the List Values of the current thumbnail will be applied to the new one on the new skin.
