Add Combobox

Combobox is the component which shows scene name (map name or movie name) in a single item list box. When running virtual tour, you can choose a certain scene (map or movie) from the Combobox. In Tourweaver 7, you can not only list several or all the scenes but also list map or movie.

How to add Combobox

1. Click Combobox from Toolbox
2. Click the blank part of Main Window to place the Combobox

Set Combobox properties

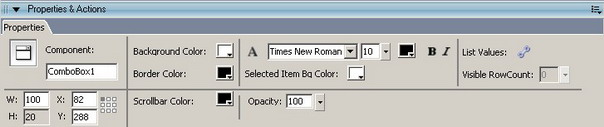

Set Combobox properties under its properties panel which is as below:

Coordinate Grid (Pro only) Refer toChange Size and Appearance of Map Viewer>How to anchor Map Viewer on the Main Window?
Background Color The background color of Combo box
Border Color The border color of Combo box
SelectedItem Bg Color The background color of the selected item
Visible RowCount The number of the visible rows which can be seen directly on the Combo box
ScrollbarColor You can set color for scrollbar

Introduction to List Values for Combobox

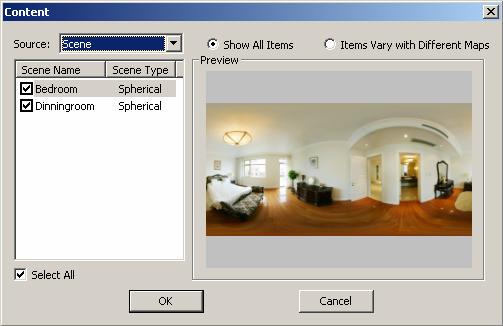

Similar to Thumbnail, there is also a List Values for Combobox. You can define the item source and detailed items by setting this List Values.

Source: To define which object to be listed in the box like scene, map or movie.

Item Description
Scene List all scenes which are chosen. When "Item Varies with different Map" is selected, the items listed in Combo box will vary with the different maps shown in Map viewer. For example, Scene1,2,3 are located in Map A (to relate a scene to a map, you can choose the relative map under the properties panel of that scene, or add a radar on the map referring to that scene) while Scene 4,5,6 are located in Map B. When map A is run, you can see scene 1,2,3 are listed in Combo box; when map B is run, scene 4,5,6 are shown in Combo box.
Map
(only available in Professional edition)
List all maps which are chosen
Movie
(only available in Professional edition)
List all movies which are chosen

List: It's where all the source items will be listed. You can decide whether each of these items is shown or not by selecting the checkbox.

How to set scene List Values

1. Choose the Combobox which you're going to set from Main Window
2. Click from its Properties panel
3. Choose scene as its source
4. Select the checkbox of the scene which you're going to show in the list
5. Repeat step 4
6. You can select Show all items or Items varies with different map
7. Click OK

How to set Map List Values

1. Choose the Combobox which you're going to set from Main Window
2. Click from its Properties panel
3. Choose map as its source
4. Select the checkbox of the map which you're going to show in the list
5. Repeat step 4
6. Click OK

How to set Movie List Values:

Ditto
Note: When the current skin is replaced, the List Values of the current combo box will be applied to the new one on the new skin.
