How to Add Actions to Components

After you add a button onto Main Window, you have to add an action to it; otherwise, no event will be triggered when clicking this button.

How to set button action

Select the button on Main Window

1. Click Action tag from Properties and Action panel
2. Choose Scene>Left from action list
3. Click
4. Make relative settings on popup window like Rotating Speed (20)

5. Click OK. Then an action to turn left is added to this button.

Note: The button in Tourweaver 1.30 carries default action while in Tourweaver 5.00 you have to add action manually to button.

Set text action is to add a triggered event to Text. For example, you can add a link to certain text.

How to set text action

1. Add a Text component to Main Window and select it
2. Choose Action tag from Properties and Action panel
3. Select Misc>Link URL from action list
4. Click

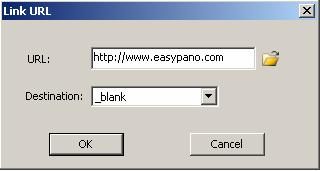

5. Set relative link on the popup window like http://www.easypano.com

6. Click OK

When you add an image component on Main Window, you can also add an action to the component.

How to set action for image

1. Select the image component which you're going to set on Main Window
2. Choose Action tag under Properties and Action panel
3. Select Scene>Link to Scene from action list
4. Click

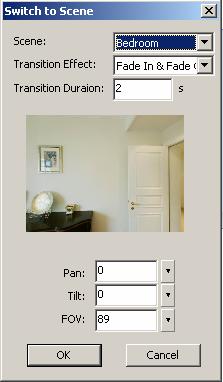

5. Make relative settings in the popup setting window like choosing scene1 for Scene as shown below:

6. Click OK. The action Link to Scene is added to the image component.

When you add an video component on Main Window, you can also add an action to the component.

How to set action for video component

Take adding Link URL as an example.
1. Add a Video component to Main Window and select it
2. Choose Action tag from Properties and Action panel
3. Select Misc>Link URL from action list
4. Click
5. Set relative link on the popup window like http://www.easypano.com

6. Click OK

How to set action for flash component

1. Click button, then click on the scene or window you want to add it to, the flash component will be added successfully.
2. Click Action tag, then the Flash Actions panel will appear.
3. Select actions from the actions panel and click button. Make settings in the popup dialog box and click OK to add the actions.

Optimization for Action panel in Tourweaver7

Refer to Add Flash for more info.
